تفاصيل المنتج
مكان المنشأ: باوجي ، الصين
اسم العلامة التجارية: LIHUA
إصدار الشهادات: ISO9001, TUV etc.
رقم الموديل: LH-TH
شروط الدفع والشحن
الحد الأدنى لكمية: قطعة واحدة
الأسعار: US dollar $15/kg--US dollar $35/kg
تفاصيل التغليف: صندوق خشب رقائقي للتصدير
وقت التسليم: 5-25 يوم عمل
شروط الدفع: L/C، T/T، ويسترن يونيون
القدرة على العرض: 5000 كجم شهريا
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |

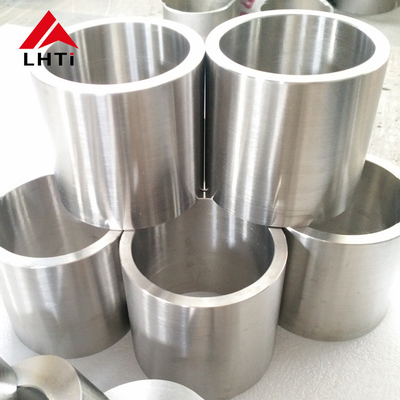

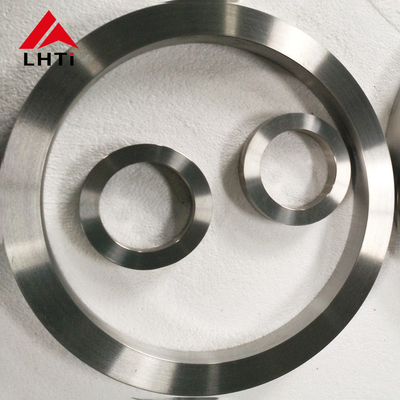

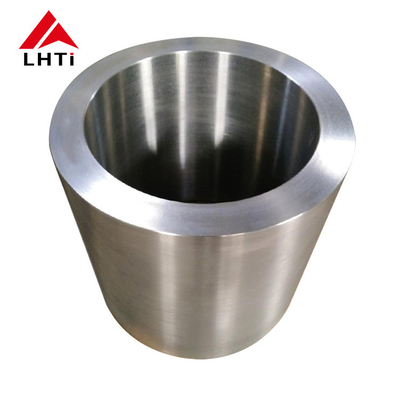

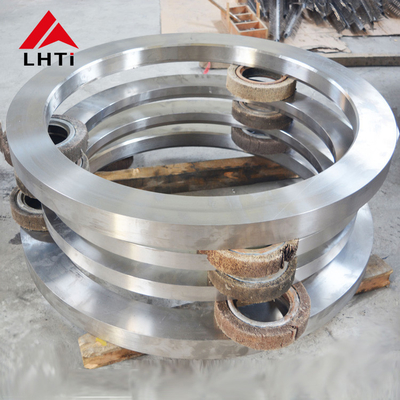

GR5 Forging Titanium Alloy Ring ASTM B381
Astm B381 Titanium Forgings Parts & Components:
In recent years, there has been a significant rise in the demand for titanium and titanium alloys, primarily used in aircraft and aerospace applications. The price of commercially pure titanium (CP) has risen sharply since 2003 to 2014, from $15.00 per lb to $30.00 per lb. It is an extremely light weight and high strength material. Certain alloys like 6AL-4v, 8Mn, 8Al-1MO-1V, 5Al-2.5Sn,and 6Al-2Sn-4Zr-2Mo, are also used in Aircraft engine applications due the ability of these alloys to with stand high temperature environments.
Titanium forgings that are used with Commercially Pure Alloys (Grade 1 ,Grade 2, Grade 3, Grade 4) are primarily used in Aircraft Frame applications.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
